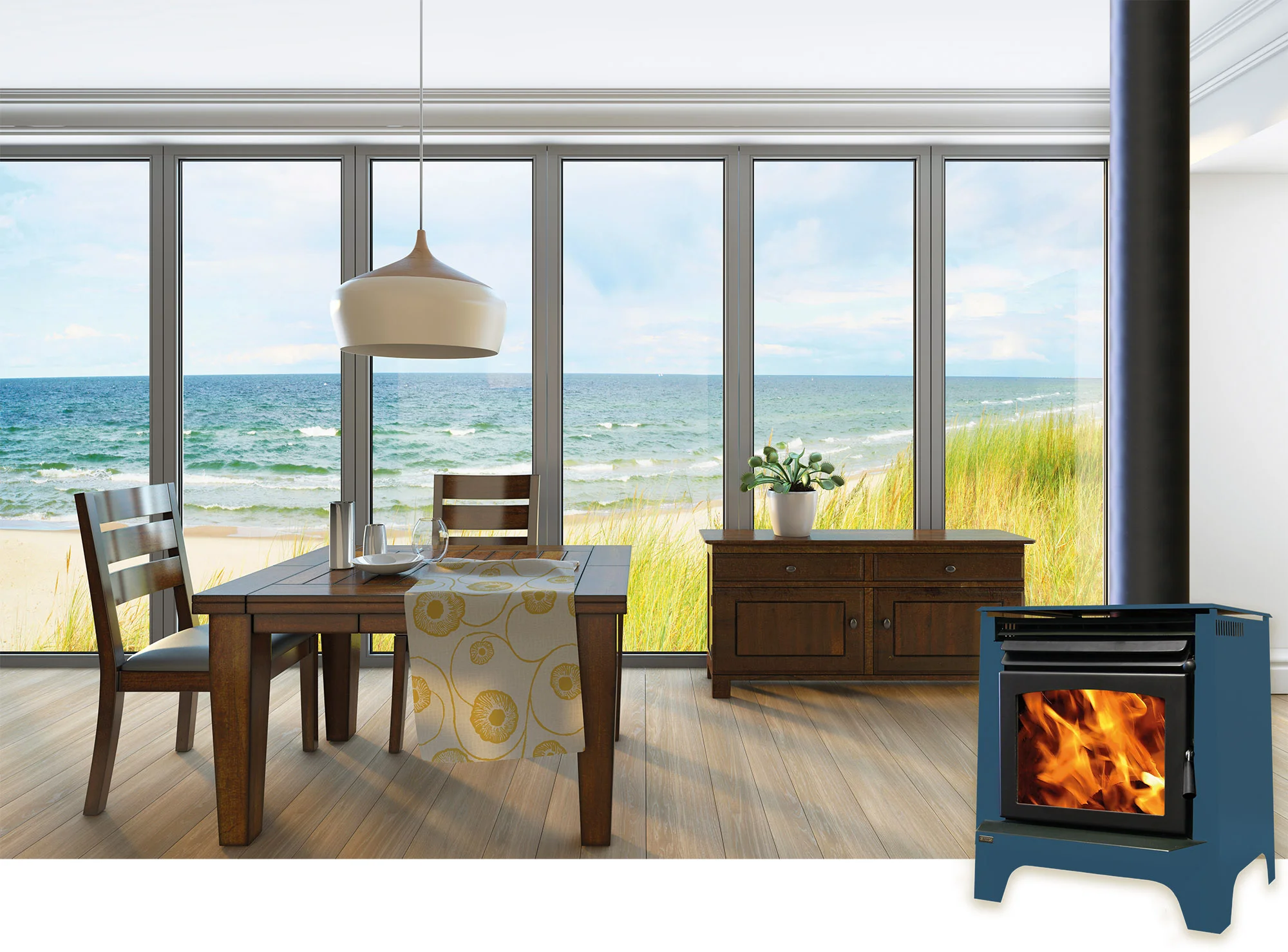

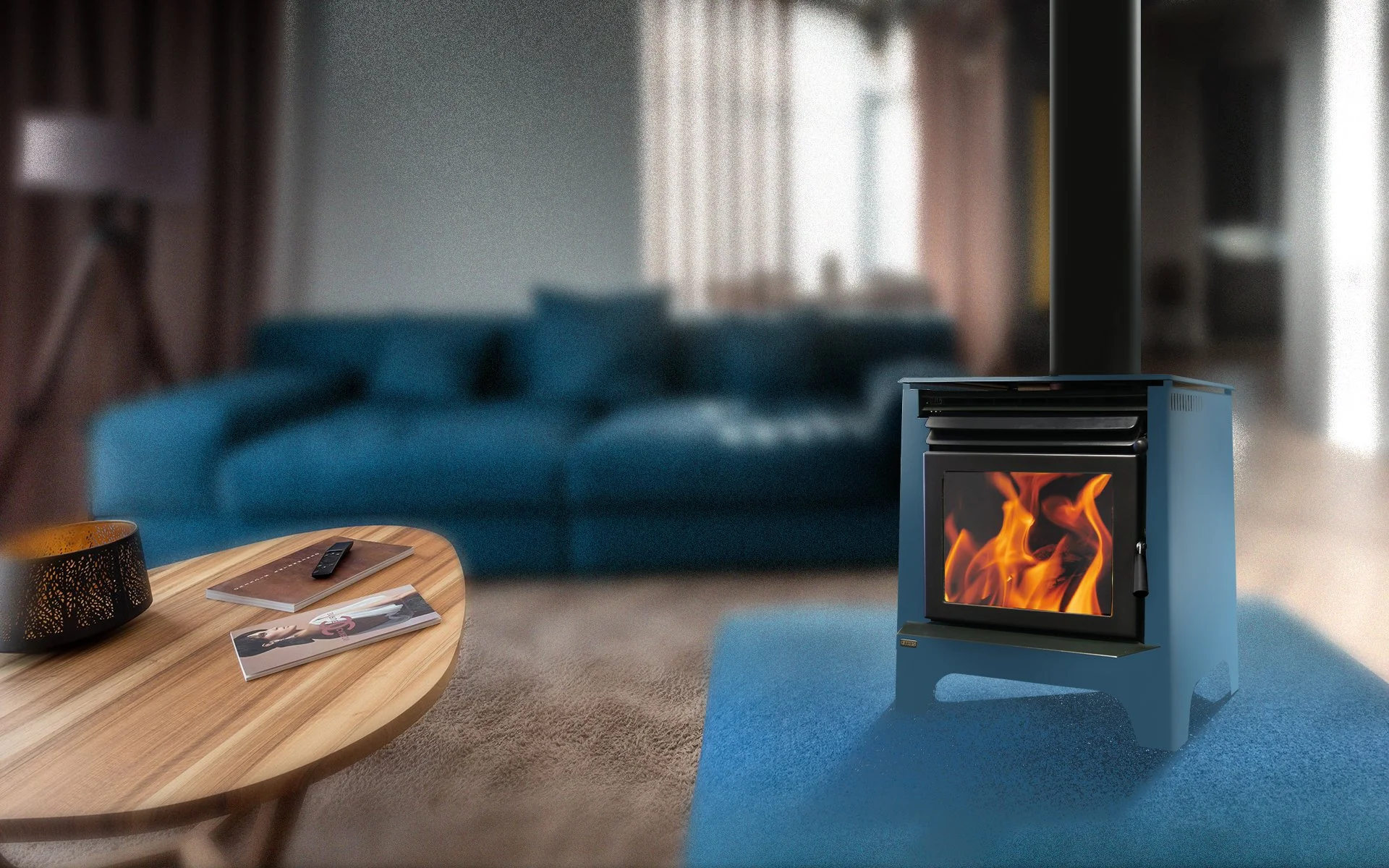

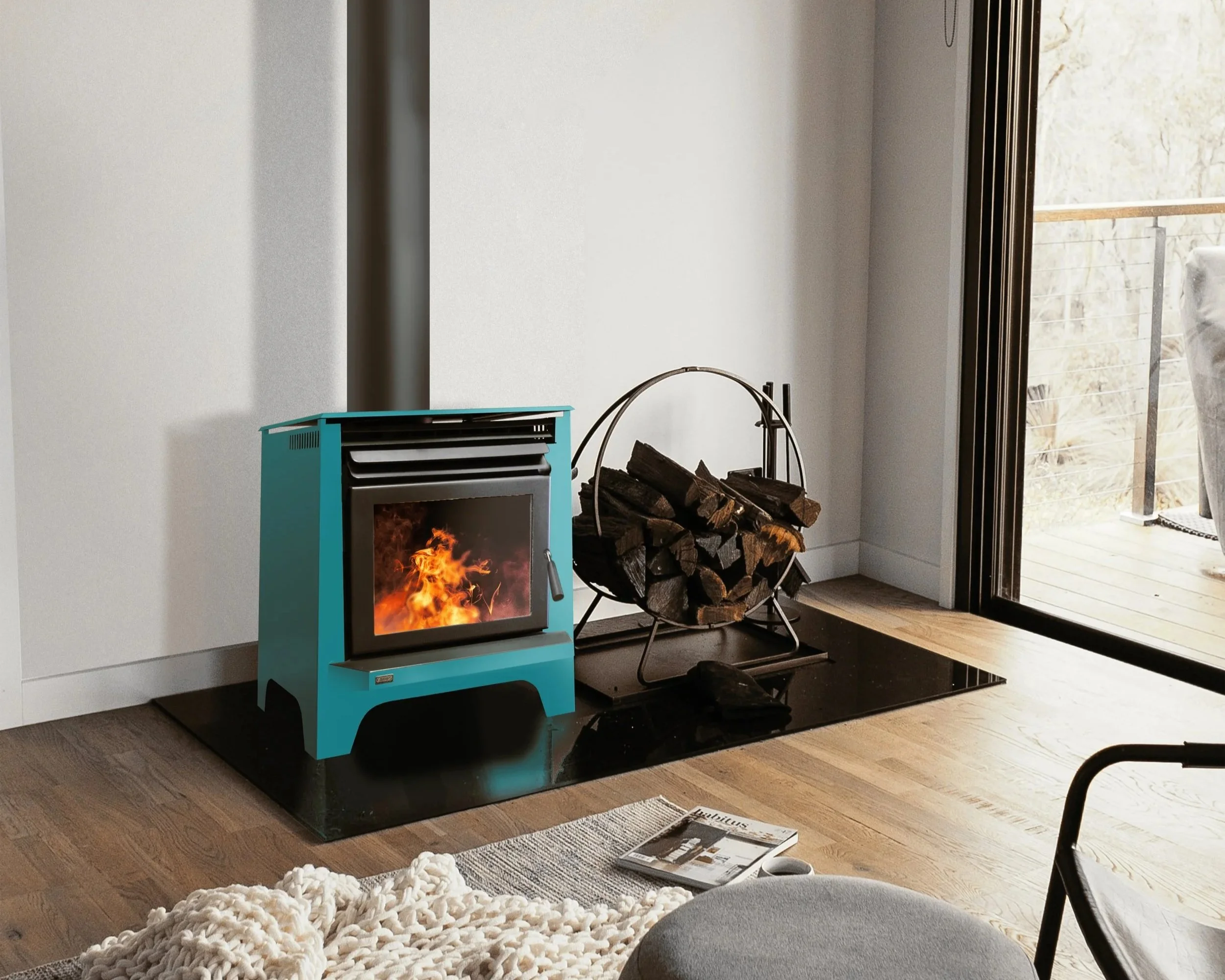

A modern version of the classic stove design, Phoenix offers a fresh cubic concept with sturdy visual cues from its outward tapering legs



To heat your whole home, not just your living room, having greater convective properties is a real advantage. Moving the heated air means it can heat a larger area, and travel down hallways, around corners, and gets to those hard to reach cool areas that radiant heat alone just can’t heat up.

The Phoenix is designed to maximise its convection output by way of its clever inner and outer layer design. Air is drawn up between the firebox and the outer shell, and convected out from the top section into the room. It literally pumps the heat out.

A highly convective wood fire is ideal if you are installing a heat transfer kit, to take the heat from your living room and pass it to other rooms in the house. Moving warm air is critical to the way heat transfer kits operate, and allows you to power your home heating solution with ease.

Of course those in close range will also enjoy the lovely radiant properties from the Phoenix’s large glass window front, and an entertaining view of the bright burning high efficiency fire.

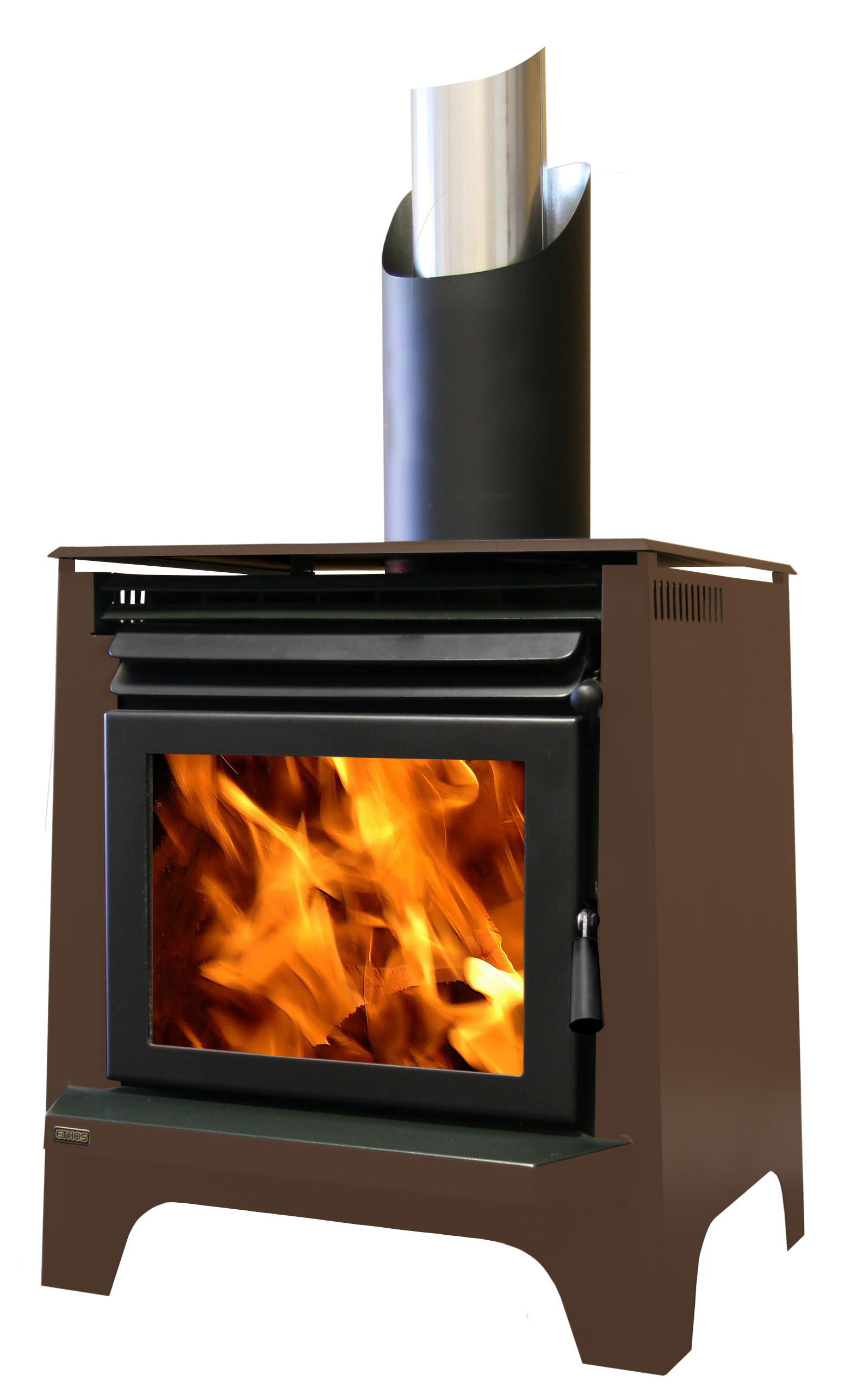

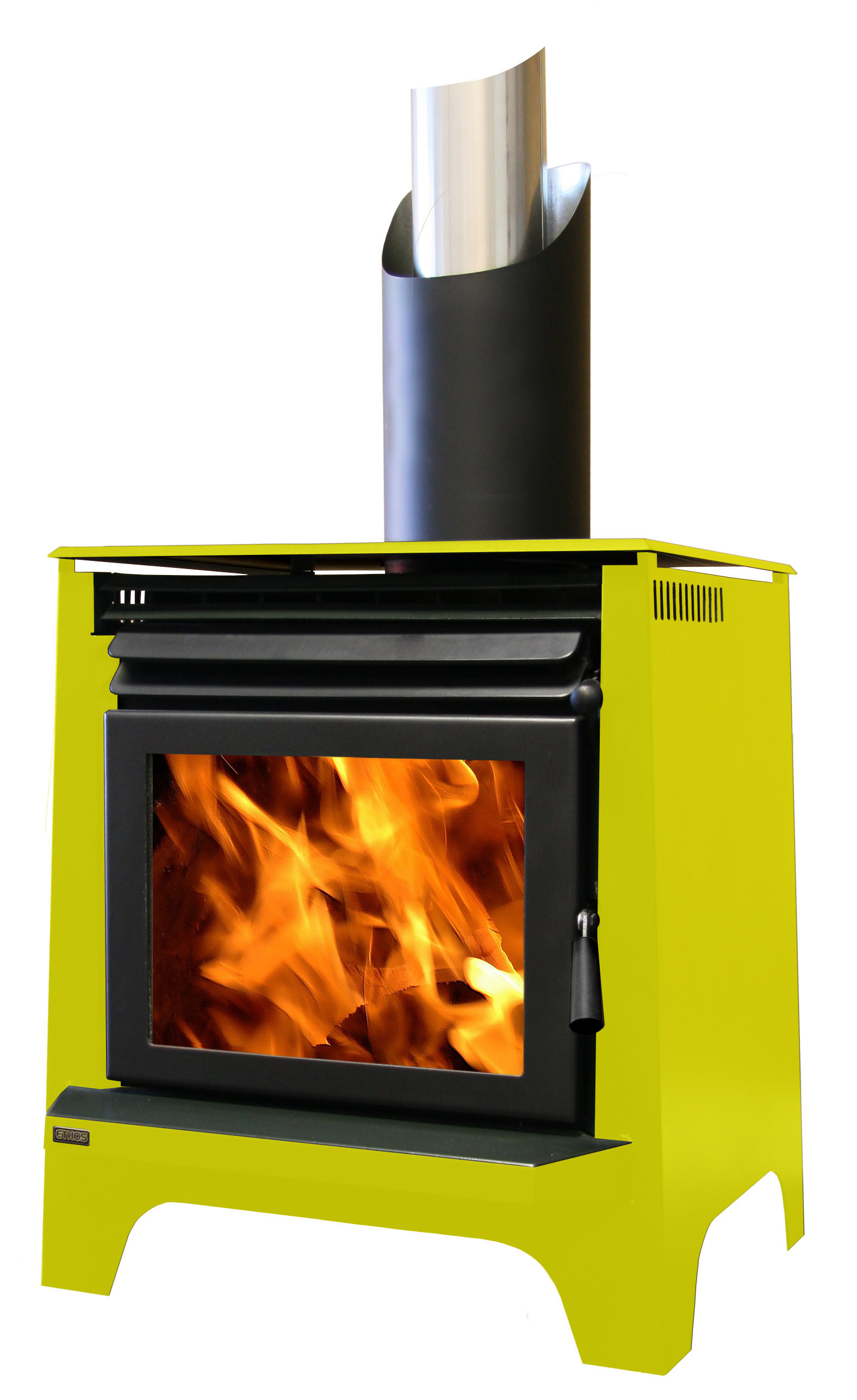

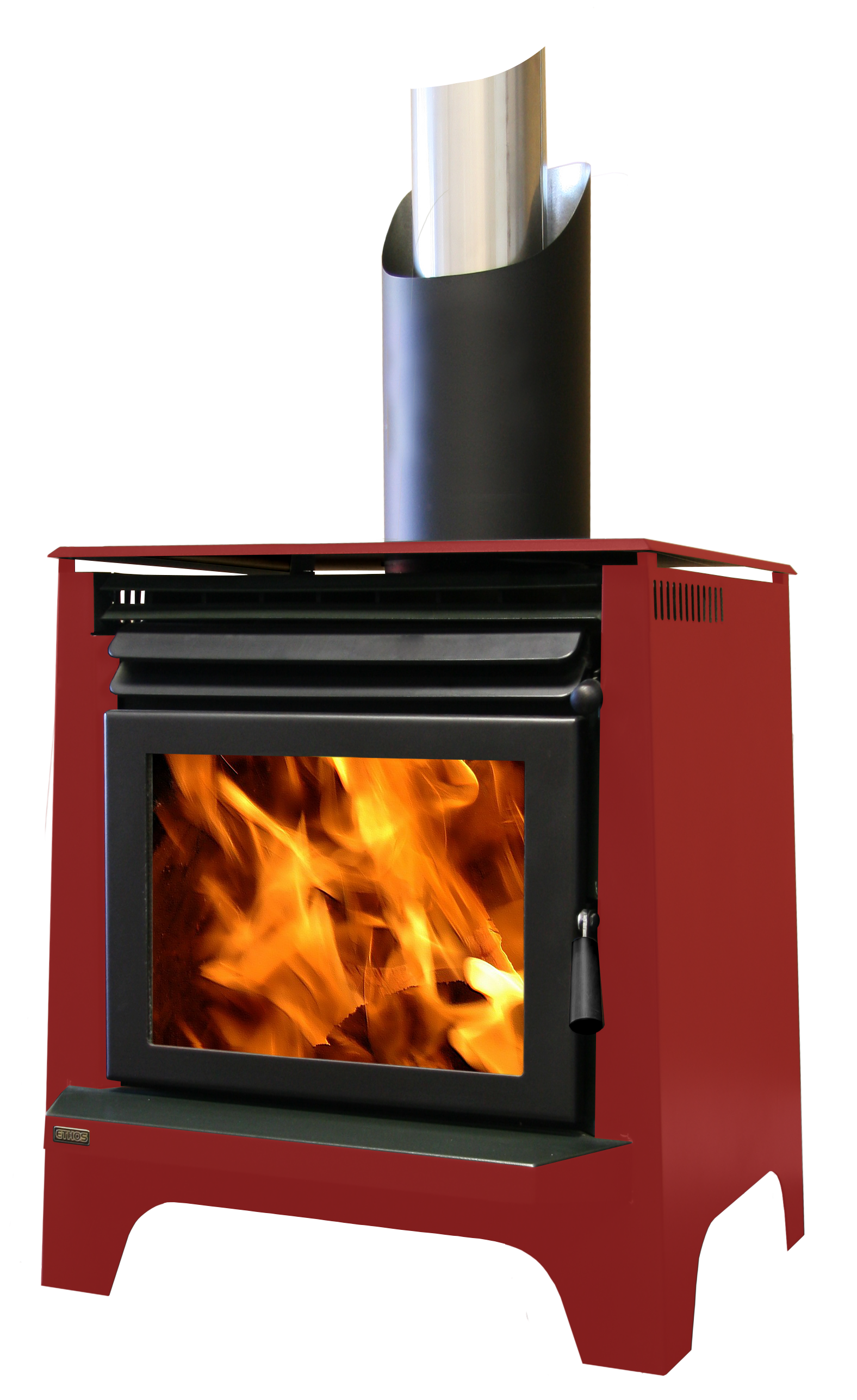

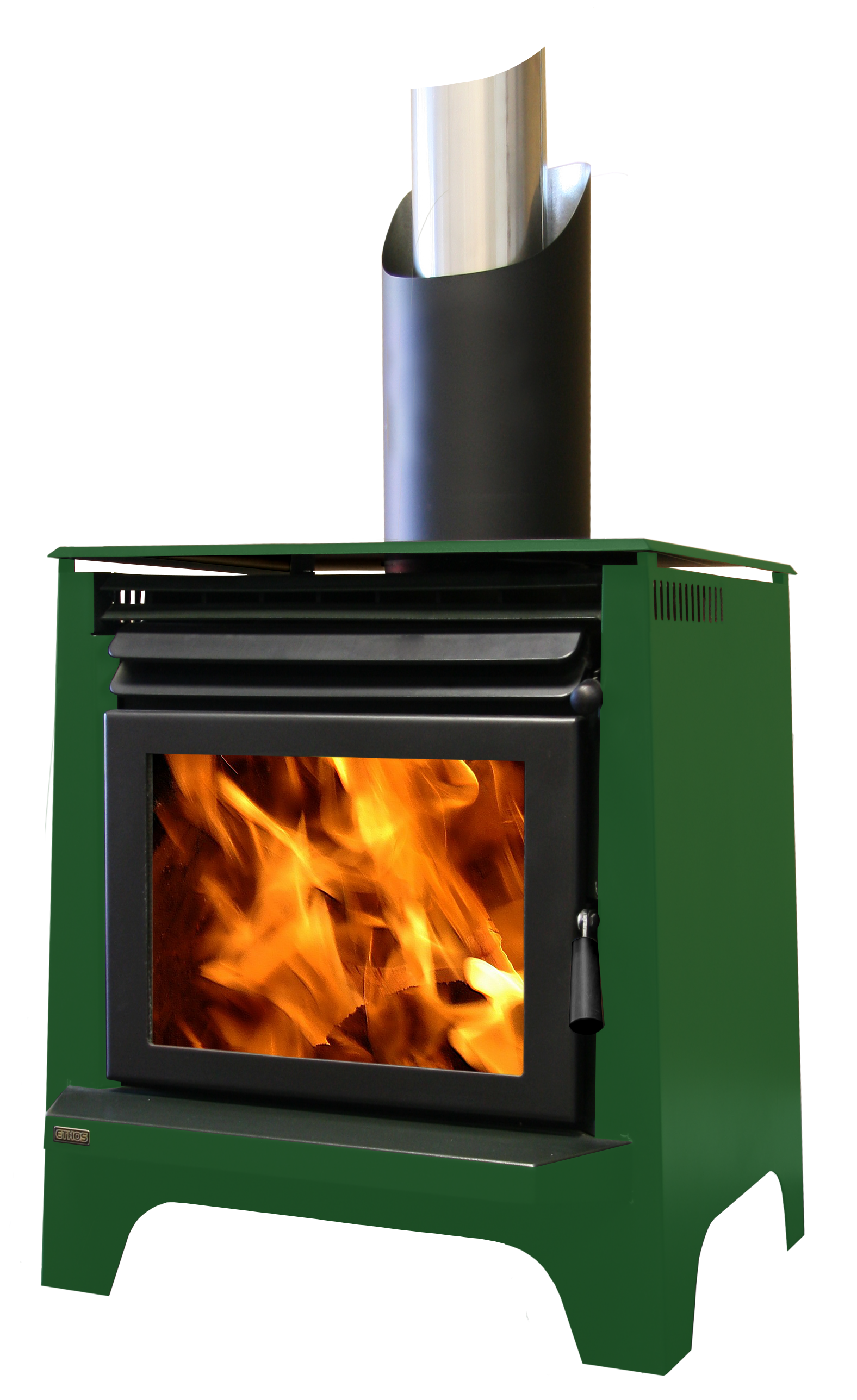

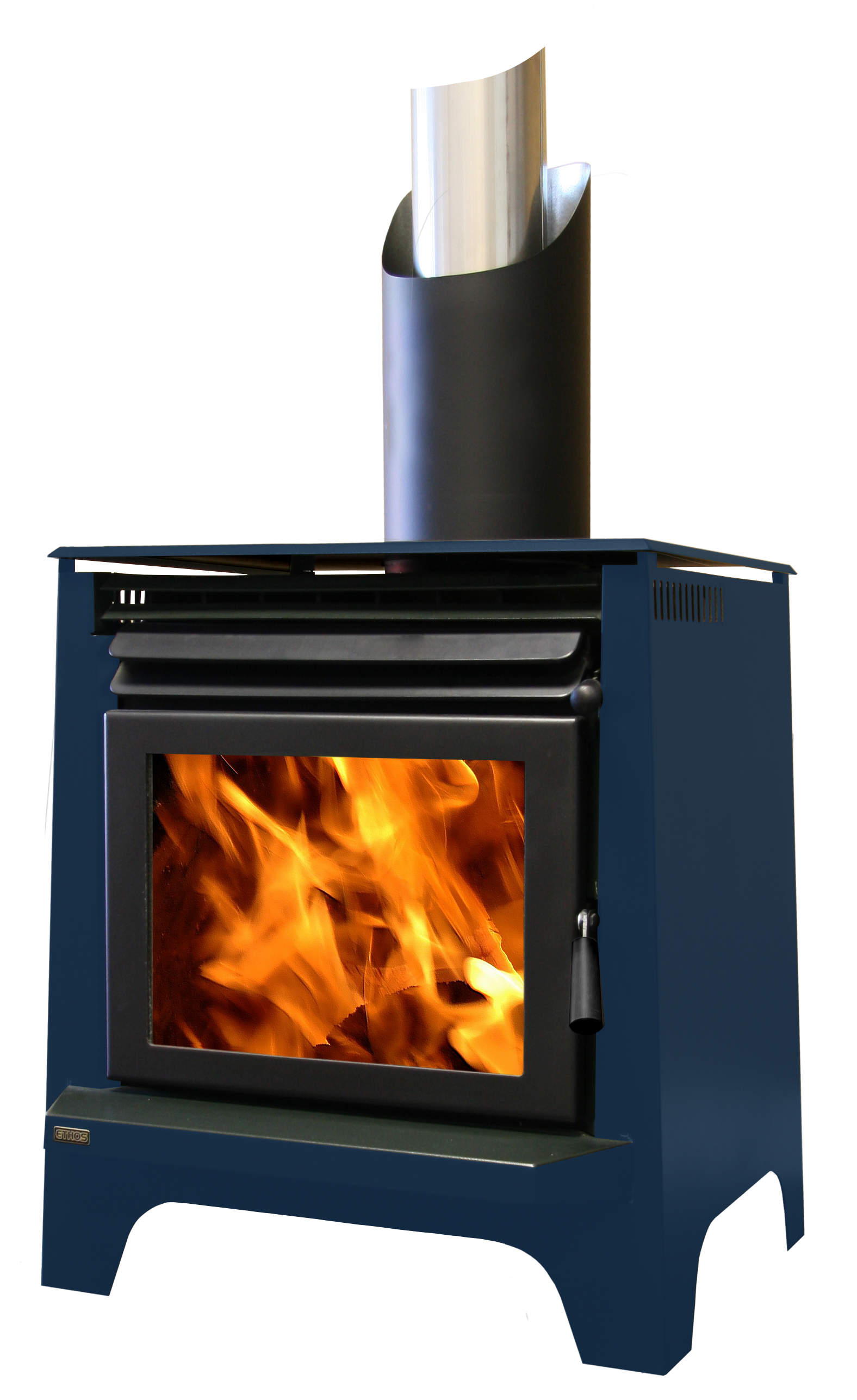

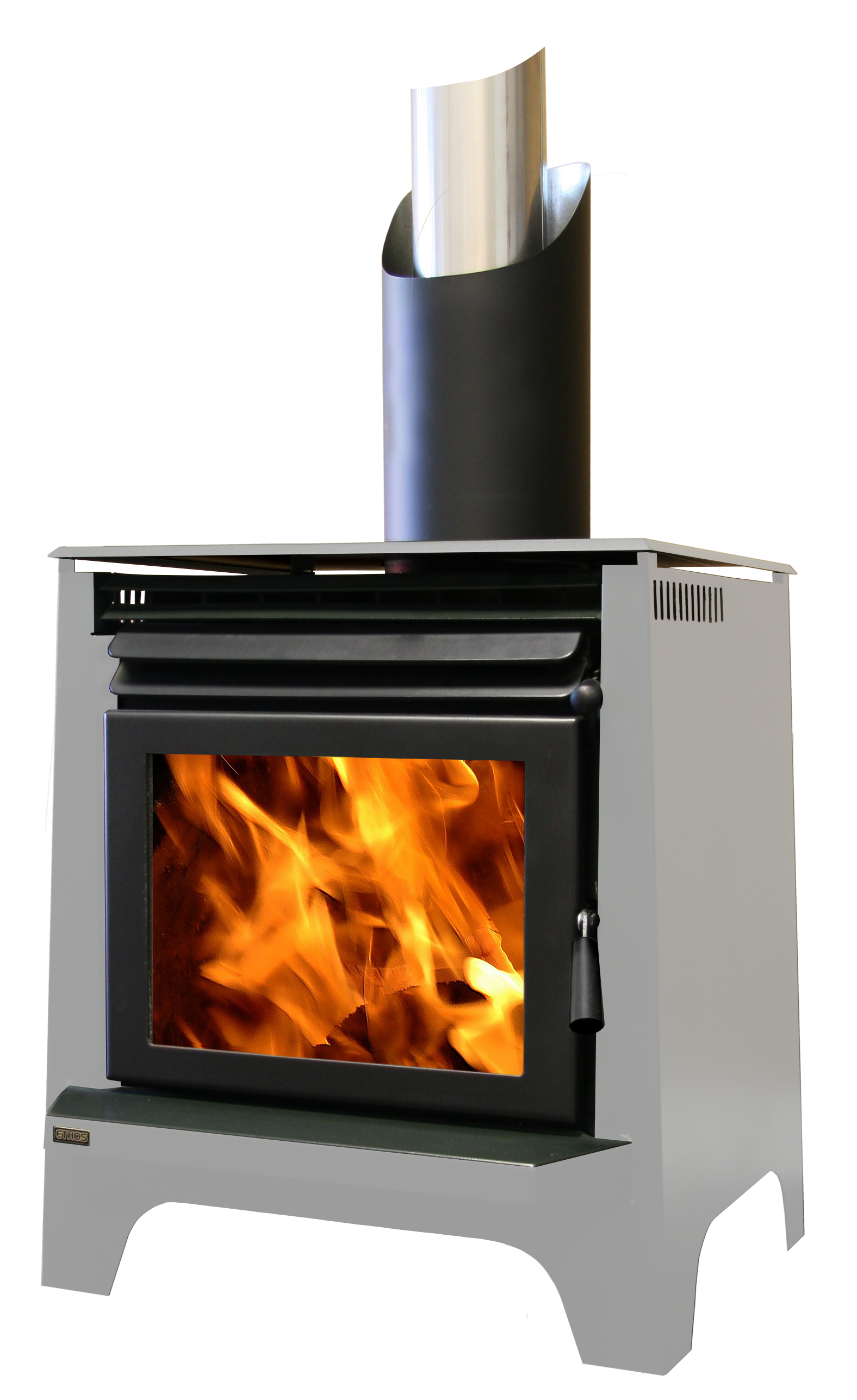

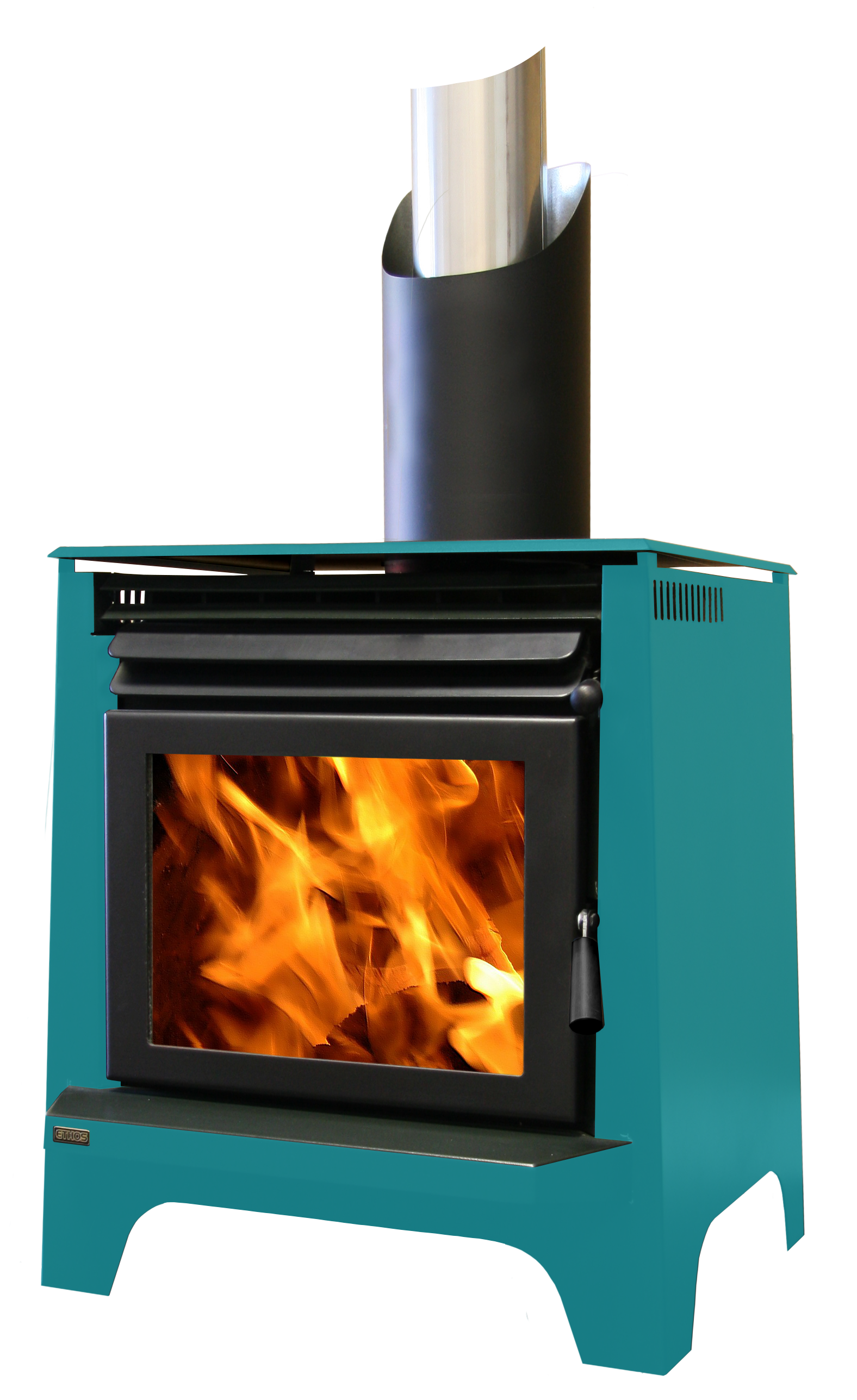

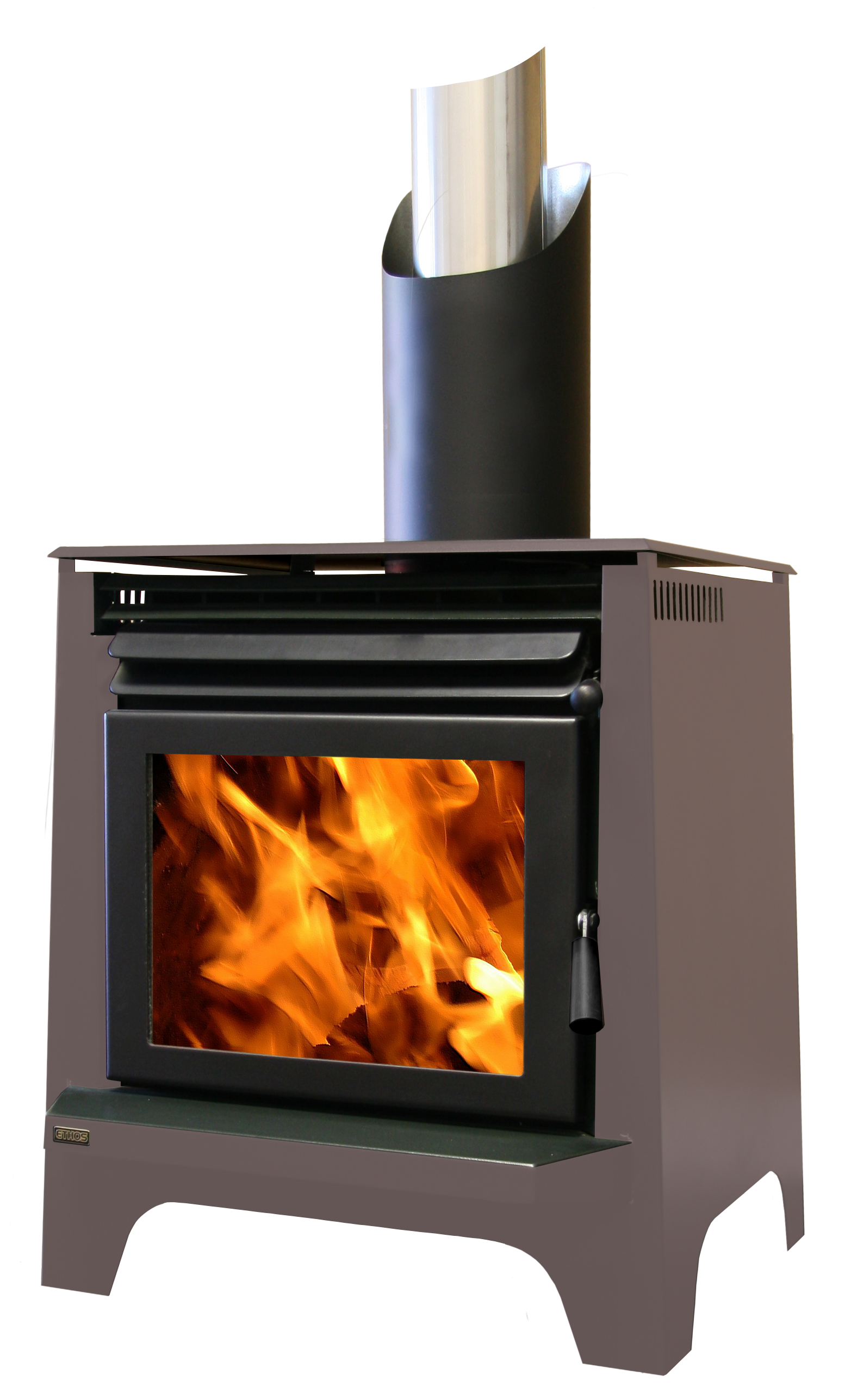

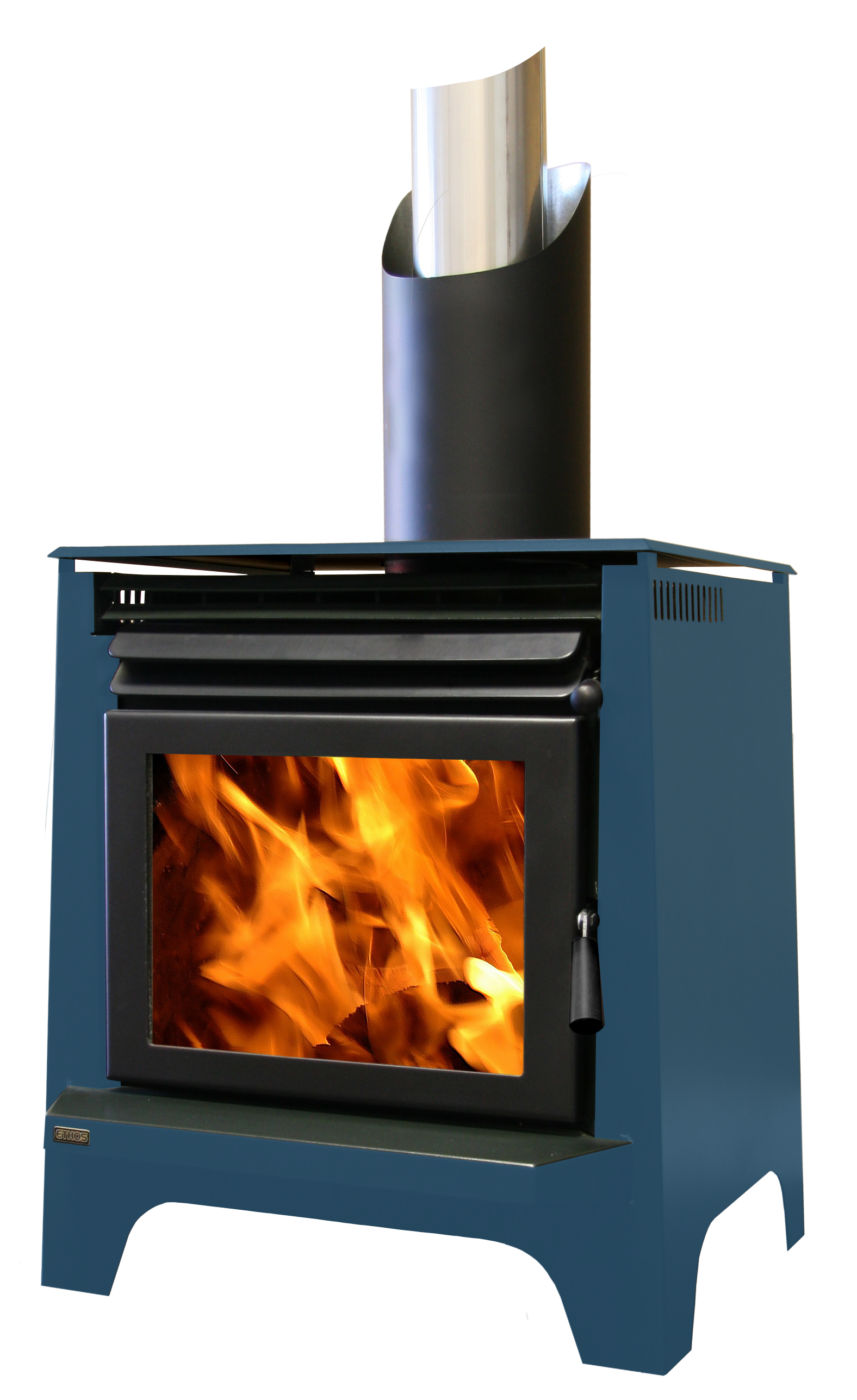

With over 100 colour options the Phoenix brings a touch of class to any room.




phoenix Performance

Estimated Peak Output: 18kW

Average Efficiency: 72%

Average Emissions: 0.56 grams per kilogram

Emissions per Output : 39 milligrams per megajoule



dimensions

Flue Diameter: 130mm

Fire Height: 670mm

Fire Width: 540mm

Fire Depth: 485mm



APPROVALS

NZ MFE/ECAN approval number: 091862

Tested and compliant to the following standards:

  • AS/NZS 4012:1999 Power output and heating efficiency

  • AS/NZS 4013:1999 Flue gas emissions

  • AS/NZS 2918:2001 Safety



downloads



Price

  • $5299 Phoenix fire

  • $1099 for 4.2m flue kit*

    * additional flue liners and hardware may be required for some installations. Please confirm with your Ethos dealer for total cost.


DRAFT FREE ECO-FLUE SYSTEM

DRAFT FREE
ECO-FLUE SYSTEM

HIGH OUTPUT FIREBOX

HIGH OUTPUT FIREBOX

DESIGNED FOR LOW EMISSIONS

DESIGNED FOR LOW EMISSIONS

15 YEAR FIREBOX WARRANTY

15 YEAR FIREBOX WARRANTY

OVER 100 BESPOKE COLOURS AVAILABLE

OVER 100 BESPOKE COLOURS AVAILABLE

MADE IN NEW ZEALAND

MADE IN
NEW ZEALAND
